380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control

1 takım
MOQ
USD 6200 Per Set
fiyat
380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Boyutlar: 2900(U)*1150(G)*1350(Y)
Kontrol tipi: Dokunmatik ekran + PLC
Sıcaklık Aralığı: Ortam --- 350°C
Maksimum PCB genişliği: 400 mm
Konveyör hızı: 200MM-1800MM/Min
Lehim Potası Kapasitesi: 200kg
Güç türü: 3 fazlı 220V 60Hz 3 fazlı 380 50HZ
Vurgulamak:

380V dual wave PCB soldering machine

,

automatic SMT wave soldering machine with PLC

,

lead-free precision wave soldering machine
Temel bilgiler
Menşe yeri: Çin
Marka adı: HONREAL
Sertifika: CE
Model numarası: HR-S1825M
Ödeme & teslimat koşulları
Ambalaj bilgileri: ahşap
Teslim süresi: 15 iş günü
Ödeme koşulları: L/C,T/T,Western Union
Yetenek temini: 100 set/ay
Ürün Açıklaması
380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control

This advanced lead-free dual wave soldering machine features PLC touchscreen control, two-stage hot air heating, and automatic titanium claw cleaning. Designed for precision PCB soldering with maximum efficiency and minimal waste.

Technical Specifications
Model Lead-Free Dual Wave Soldering Machine HR-S1825M
Configuration Touchscreen Control Two-Stage Hot Air Heating Dual Wave Peaks Automatic Titanium Claw Cleaning, Electric In-and-Out of Solder Pot Spray Oscillation: Stepper Motor
Number of Wave Peaks 2 Wave Peaks
Maximum Board Width Max 250mm
Solder Pot Capacity 200KG
Preheating Length 800mm (Two Stages)
Wave Peak Height 12mm
Component Lead Length on Board 10mm
PCB Transportation Height 750±20mm
Total Power 11KW
Power Supply 3-Phase 5-Wire System, 380V 50HZ
Control Method Touchscreen
Rack Dimensions 1800×1200×1500mm
Overall Dimensions 2600×1200×1600mm
PCB Transportation Speed 0-1.8 m/min
Preheating Zone Temperature Room Temperature - 180°C
Heating Method 100% Hot Air
Cooling Method Axial Fan Cooling
Solder Pot Temperature Room Temperature - 300°C
Transportation Direction Left -> Right
Temperature Control Method PID + SSR
Overall Machine Control Method Mitsubishi PLC + Touchscreen
Key Features
  • Flux Capacity: Max 5.2L with stepper motor spraying system
  • Extended 2-stage hot air preheating zone (800mm total length)
  • Precision temperature control (PID) with ±2°C accuracy
  • Low oxidation design: Lead-free solder dross ≤ 1.5kg/8h
  • Automatic needle claw cleaning device
  • High-strength wear-resistant guide rails with 0.5mm parallelism
  • Mitsubishi PLC control with touchscreen interface
  • Streamlined frame structure with fully enclosed maintenance doors
Product Images

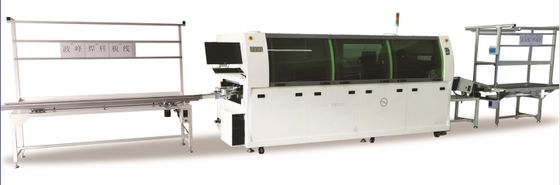

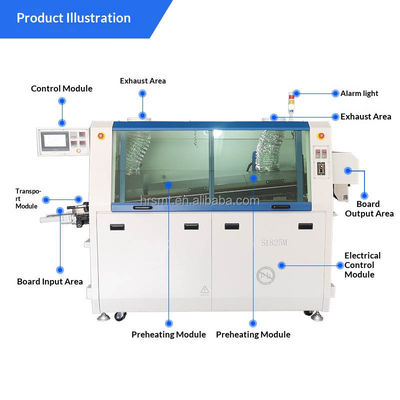

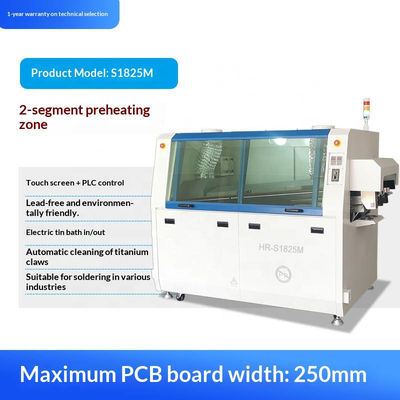

380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control 0 380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control 1 380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control 2
Work Environment Requirements
  • Ventilated and dry workshop with flat floor
  • Ambient temperature: 5-45°C
  • Stable, well-grounded power supply with rated current

Before powering on: Verify power rating, proper grounding, and secure electrical connections.

About Shenzhen Honreal Technology Co., Ltd

National high-tech enterprise specializing in SMT equipment R&D, production, and sales. Serving top 500 electronic companies worldwide with registered capital of 5 million. Our experienced technical team focuses on innovation to meet diverse customer needs through valuable services.

380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control 3 380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control 4
Frequently Asked Questions
Q: How can you guarantee your sales' quality?

A: We guarantee rigorous testing of every machine before delivery to ensure excellent performance.

Q: How is the training?

A: Engineers can train at our facility or easily learn through provided training videos and user manual included with the machine.

Q: Can I have my logo on the product?

A: We fully support free customized logo service - just provide your requirements.

Q: Is it hard to use these machines?

A: No, most clients learn operation within 2 days.

Packaging
380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control 5
